4ft Plywood Cutting Machine

$8,550.00

4ft plywood cutting machine suitable to different kind wood like eucalyptus, poplar,birth, pine and so on.
Adjustable setting, the knife can be easily checked for sharpening. 2.The machine uses high-precision gear wear
and durability

Product Description

4ft plywood cutting machine suitable to different kind wood like eucalyptus, poplar,birth, pine and so on.
Adjustable setting, the knife can be easily checked for sharpening. 2.The machine uses high-precision gear wear
and durability

4ft plywood cutting machine
4ft plywood cutting machine

Features

  • The advanced CNC system ensures the veneers cut uniformly with high precision and high efficiency.
  • Wood rotary peeling machine and cutting machine all in one
    4ft plywood cutting machine
  • Wood rotary peeling Max. Diameter is 500mm.
    4ft plywood cutting machine
  • The thickness of the veneer, the gap of the knife can be adjusted automatically. You only need to input the
    thickness you need, the machine can adjust the gap of knife by itself. So the workers needless adjust the
    knife gap by hand.
    4ft plywood cutting machine

Specification of 4ft Plywood Cutting Machine

Model
SE-SP1500F
SE-SP1500S
Length of peeler log
1000-1300mm
900-1300mm
Diameter of peeler log
Φ36-Φ500mm
Φ36-Φ500mm
Length of blade
1500mm
1500mm
Thickness of veneer peeler
0.5-4mm
0.5-4mm
Linear speed of host machine
45mm
35-80m/min Speed adjustable
Diameter of driving roller
120mm
610-2540mm
Diameter of pressurebar roller
120mm
120mm
Power of feeding Motor
7.5KW Servo Motor
120mm
Power of single roller
11KW
11kw servo motor
Power of double roller
11KW
5.5KW*2pcs
Power of cutter
2.2KW
7.5KW*2
Power of rubber roller
2.2kw
2.2KW servo motor
Power of conveyor
2.2kw
2.2kw
Total Power
35.4KW
1.5kw
Total Power
35.4KW
42.9KW
Total weight
50000kgs
52000KGS
Overall dimensions
4500*1800*1380mm
4500*1800*1380mm

Packing & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.

Company Description

Sinoeuro Machinery is a leading brand for wood based panels machinery. Sinoeuro Machinery manufacturer
is a professional manufacturer with 26 years experience for veneer peeling, plywood machinery solutions plant
with factory layout design and processing technology support.

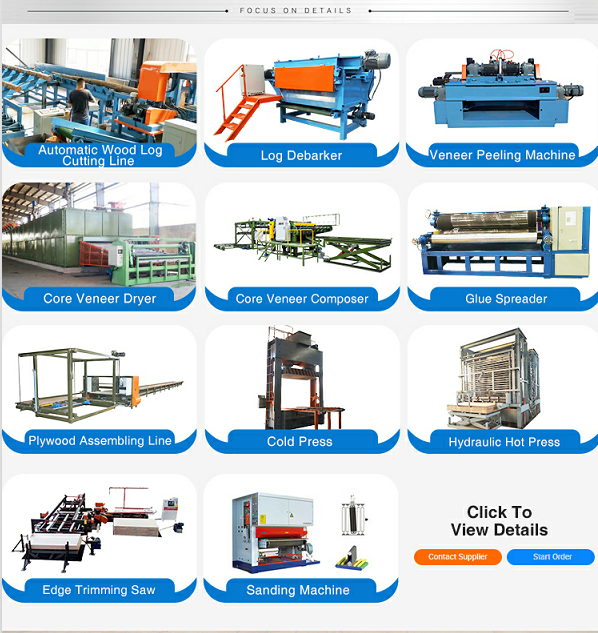

Main equipment include: spindle and spindleless wood veneer peeling machine,veneer dryer, glue spreader,
pre-press, hot press, core composer, double sizer saw, sanding machine, boiler, and related plant accessories
and materials, etc.
