Automatic Plywood Sanding Machine

$29,800.00$33,500.00

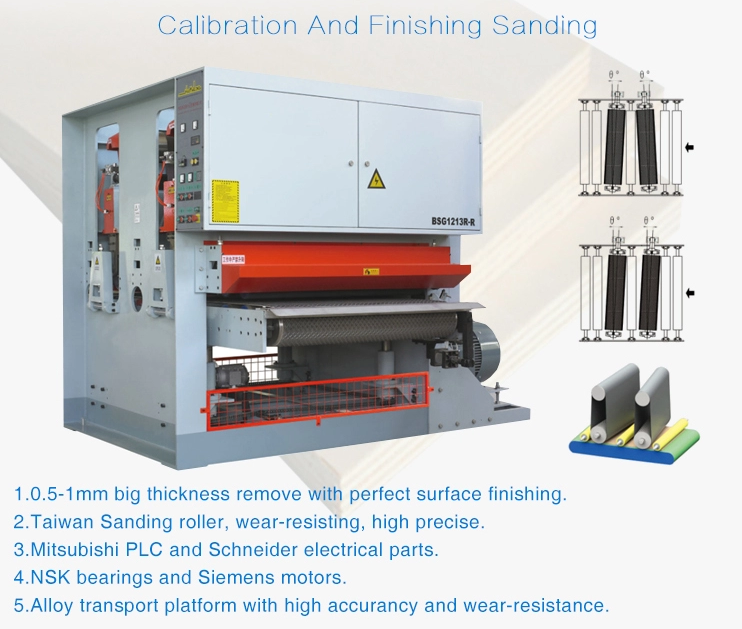

Features:
1.0.5-1mm big thickness remove with perfect surface finishing
2.Taiwan Sanding roller, wear-resisting, high precise.
3.Mitsubishi PLC and Schneider electrical parts.
4.NSK bearings and Siemens motors.
5.Alloy transport platform with high accurancy and wear-resistance.

Product Description

Features:
1.0.5-1mm big thickness remove with perfect surface finishing
2.Taiwan Sanding roller, wear-resisting, high precise.
3.Mitsubishi PLC and Schneider electrical parts.
4.NSK bearings and Siemens motors.
5.Alloy transport platform with high accurancy and wear-resistance.

Automatic plywood sanding machine
Specification of Automatic Plywood Sanding Machine
Model
BSG2313R-R-R
BSG2113R-R
Working width
≤1300mm
Working thickness
0-100mm
Working length
≥750mm
≥1000mm
Working precision
±0.08mm
±0.1mm
Abrasive belt speed
22.5m/s
Abrasive belt size P*W
2620*1320mm
Auto-feeding system: frequency
15-50m/min (adjustable)
5-30m/min (adjustable)
Motor for 3M non-woven roller
4KW (optional)
Motor for abrasive belt
55KW+45KW+37KW (optional)
55KW+45KW (optional)
Total power
150KW
116KW
Working air pressure
0.55Mpa
0.5-0.8Mpa
Air consumption
1.2cbm/min
1cbm/min
Speed of dust-collecting
6-45m/s
5-30m/s
Volume of dust-collecting
28000cbm/h
18000cbm/h
Overall dimension
3100*2845*2500mm
2900*2820*2500mm
Net weight
12000kg
10000kg

Automatic plywood sanding machine Advantages

1. High sanding speed. Working capacity is double of normal wide belt sanding machine. About 3000pcs/day.
2. It is heavy duty calibrating machine, do big removing thickness, Max. removing thickness 1mm, it can be adjusted according to user requirement.
3. Good evenness. It can calibrate board with big removing thickness, also make board with good evenness at same time
4. Heavy duty and long service life. The machine is still with high sanding accuracy after 5 years working.
5. High configuration. Machine adopts Schneider and CHNT electric parts, Huali brand (the best China motor brand) motor, Taiwan roller.

Automatic Plywood Sanding Machine

Automatic Calibrating Sanding Line Drawings

We can provide complete solution for plywood production line and automatic sanding line solution for PB, MDF plant.
Not only high quality equipments, but also workshop design and experienced after-sales service. Here are some
drawings for our customer’s layout design.

Automatic Plywood Sanding Machine

Automatic Plywood Sanding MachineAutomatic Plywood Sanding Machine

Other Models Sanding Machine

 Single Side Calibrating Sander                                    Wide Belt Sander                                 Furniture Brush Sander



Automatic Plywood Sanding MachineAutomatic Plywood Sanding MachineAutomatic Plywood Sanding Machine

Double Side Sanding Machine in Users’ Factory

Heavy duty double side plywood calibrating sanding machine double heads type wood sanding machine
