Product Description
Automatic Face Veneer Stacker Machine
- 4ft face veneer stacker
Usage
Automatic veneer stacker can suit different plywood core veneer production and greatly save you time and labor.
Different choices according to your production situations.
- 8ft face veneer stacker
characteristic
(1)Veneer stacker is to pile up the cut veneer automaticlly, commonly installed after veneer peeling
machine to save labour cost and improving working efficiency.
(2)High quality, we tested andupgraded several time, production sillmature and quality guaranteed.
Automatic Core Stacker
- 4FT Vacuum Adsorption Type
characteristic
lt’s function is to pile up the cut veneer commonly automaticlly, installed after veneer peeling machine to save labour cost and improving
working efficiency.
- 8FT Vacuum Adsorption Type
High quality, the machine has been tested and upgraded several time, production sill and quality guaranteed
WithFirst and Second Grade Veneer Grading and Sorting System.
Specification
|
Model
|
4*4FT Core Veneer Vacuum Stacker
|
4*8FT Core Veneer Vacuum Stacker
|
|||
|
Veneer width
|
400-1300mm
|
4*3ft, 4*4ft, 4*8ft (size adjustable)
|
|||
|
veneer thickness
|
1.2-3.6mm
|
1-4mm
|
|||
|
Stacking speed
|
30-100m/min (speed adjustable)
|
30-100m/min (speed adjustable)
|
|||
|
Stacking height
|
1000mm
|
1000mm
|
|||
|
Vacuum absorb motor
|
1.5KW*4PCS
|
1.5KW*8PCS
|
|||
|
Lift motor power
|
2.2 kw
|
2.2 kw
|
|||
|
Total Power
|
23.2KW
|
29.2KW
|
|||
|
Total weight
|
2400kgs
|
4000kgs
|
|||
|
Overall dimension
|
8000*2040*2750mm
|
10600*2040*2750mm
|
|||

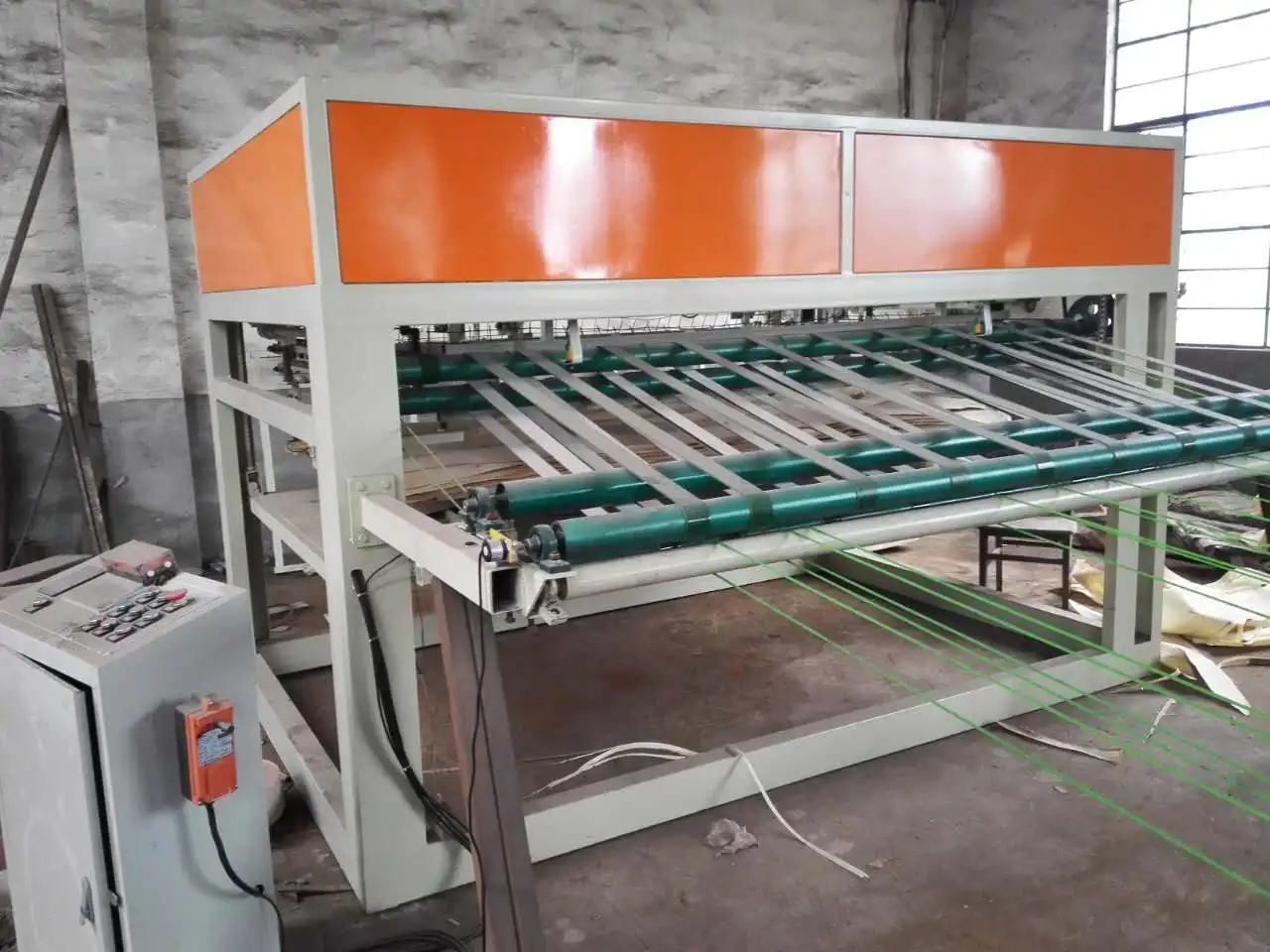

Machine live photo
Details Images
- Vacuum absorb stacking veneer
Exclusive patent desgin,Strong Adsorbing for all thickness veneer
-
Sorting & Grading veneerVeneer stacking by 2 grade or 3 grade, quality veneer and defects veneer
-
Waste veneer belt conveyorWaste veneer belt conveyor waste veneer automatic drop and conveyor out.
-
Automatic outward control system
Complete automation of manufacturing process,High efficiency and stable quality,It can quickly adjust the product structure and expand production
capacity, and greatly reduce the labor intensity of industrial workers.
-
Lead control systemLead control system, the most stable and precise system , use Schneider brand electrical parts. operation easily and long using life .
Machines in Users’ Factory
Company Introduction
Sinoeuro Machinery is a leading brand for wood based panels machinery. Sinoeuro Machinery manufacturer is a professional manufacturer with 26
years experience for veneer peeling, plywood machinery solutions plant with factory layout design and processing technology support.
Main equipment include: spindle and spindleless wood veneer peeling machine,veneer dryer, glue spreader, pre-press, hot press, core composer, double
sizer saw, sanding machine, boiler, and related plant accessories and materials, etc.
sizer saw, sanding machine, boiler, and related plant accessories and materials, etc.
