Specification of Heavy Duty Log Debarker
|
Name and Model
|
4ft log debarking machine
|
8ft log debarking machine with chipper
|
|
Max. length of peeler log
|
1400mm
|
2600mm
|
|
Max. diameter of peeler log
|
Φ80-Φ600mm
|
Φ80-Φ800mm (Log drop diameter 650mm)
|
|
Blade size
|
1500*180*16mm
|
2750*180*16mm
|
|
Linear speed of host machine
|
70m/min
|
70m/min
|
|
Diameter of double roller
|
180mm
|
180mm
|
|
Diameter of single roller
|
150mm
|
150mm
|
|
Power of double roller
|
11KW
|
11KW*2
|
|
Power of single roller
|
11KW
|
11KW*2
|
|
Power of hydraulic station
|
5.5KW
|
7.5KW
|
|
Power of assist debarking
|
/
|
2.2KW
|
|
Power of waste chipper
|
/
|
11KW*2
|
|
Total power
|
27.5KW
|
75.7KW
|
|
Reducer
|
350 gear type reducer
|
350 gear type reducer
|
|
Total weight
|
4000KG
|
9000KG
|
|
Overall dimensions
|
3800*2200*1400mm
|
5200*2200*1800mm
|
Product Description

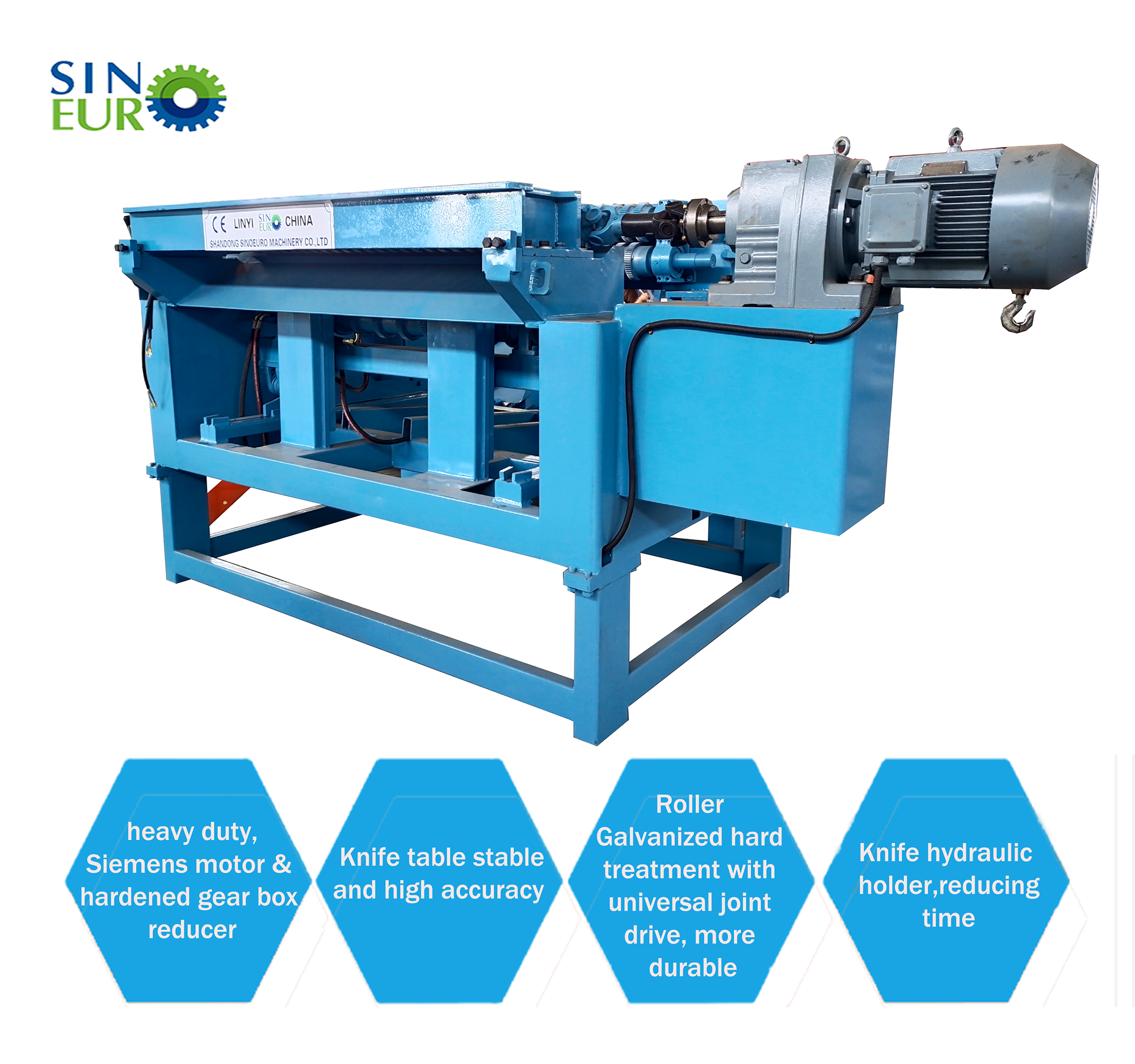

Automatic Log Debarking and Rounding Machine for Plywood
1. The double roller comes forward and backward. It is convenient for wood unloading and wood
unloading, which can improve the speed of bark removing work.
peeling speed, both for the hard wood and soft wood.
Debarking machine is divided into 4ft normal model debarking machine, 4ft heavy duty updated
debarking machine and hydraulic debarking machine.
Heavy duty updated debarking machine is updated based on the normal model debarking machine,
the whole machine structure is welded by the steel and the structure design is more stable and reasonable;
Hydraulic station is equipped with oil cooler, avoid the sealing of cylinder damage, and this high quality
hydraulic station can ensure this debarking machine 24 hours’ working without any stop.
We can supply you with different debarking machine depending on the wood species and capacity.
In addition to this, the machine can also be equipped with a crushing function, so that it can be
used for waste purposes and the raw material can be used efficiently.
2. Adopts rotary cutting principle of non-chuck rotary lathe
3. Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete
log the round work
4. One debarker machine can supply with two rotary lathe, save about five or six people
5. Hydraulic feeding, can debarking and roundup small size raw log
Matching machines
Veneer peeling machine
It is main equipment of core veneer production and mainly used to rotary peel the eucalyptus, poplar,
birch, rubber and other fast-growing wood.
after they have been screened by a rotary cutter.
Company Profile
Sinoeuro Machinery is a leading brand for wood based panels machinery. Sinoeuro Machinery manufacturer
is a professional manufacturer with26 years experience for veneer peeling, plywood machinery solutions
plant with factory layout design and processing technology support.
pre-press, hot press, core composer, double sizer saw, sanding machine, boiler, and related plant accessories
and materials, etc.
Our Services
1. Provide the free consultation of equipment
2. Provide the standard device and the flow chart
3. According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment .
4. Welcome to visit our factory
1. Inspect the machine before leaving the factory
3. Train the first-line operator
1. 24 hours online service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and
efficient packaging services will be provided.
dryers, etc. If you have any needs, you can also contact us !
