Specification of Log Tree Debarking Machine
|
Name and Model
|
4ft log debarking machine
|
8ft log debarking machine with chipper
|
|
Max. length of peeler log
|
1400mm
|
2600mm
|
|
Max. diameter of peeler log
|
Φ80-Φ600mm
|
Φ80-Φ800mm (Log drop diameter 650mm)
|
|
Blade size
|
1500*180*16mm
|
2750*180*16mm
|
|
Linear speed of host machine
|
70m/min
|
70m/min
|
|
Diameter of double roller
|
180mm
|
180mm
|
|
Diameter of single roller
|
150mm
|
150mm
|
|
Power of double roller
|
11KW
|
11KW*2
|
|
Power of single roller
|
11KW
|
11KW*2
|
|
Power of hydraulic station
|
5.5KW
|
7.5KW
|
|
Power of assist debarking
|
/
|
2.2KW
|
|
Power of waste chipper
|
/
|
11KW*2
|
|
Total power
|
27.5KW
|
75.7KW
|
|
Reducer
|
350 gear type reducer
|
350 gear type reducer
|
|
Total weight
|
4000KG
|
9000KG
|
|
Overall dimensions
|
3800*2200*1400mm
|
5200*2200*1800mm
|
Product Description

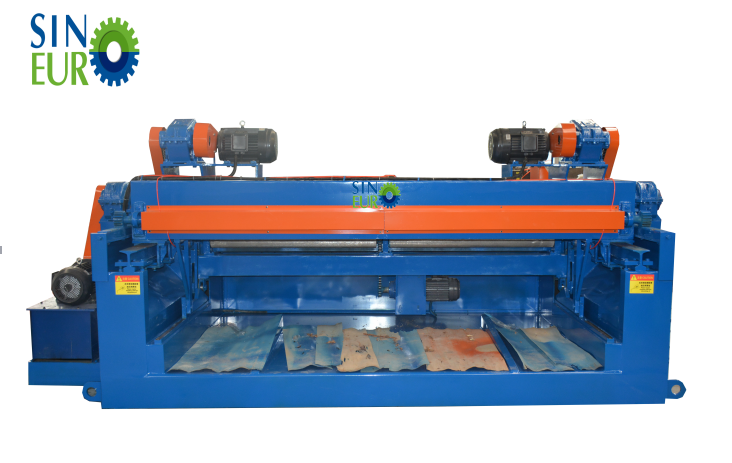

Automatic Log Debarking and Rounding Machine for Plywood
1. The double roller comes forward and backward. It is convenient for wood unloading and
wood unloading, which can improve the speed of bark removing work.
Debarking machine is divided into 4ft normal model debarking machine, 4ft heavy duty
updated debarking machine and hydraulic debarking machine.
Heavy duty updated debarking machine is updated based on the normal model debarking
machine, the whole machine structure is welded by the steel and the structure design is more
stable and reasonable; Hydraulic station is equipped with oil cooler, avoid the sealing of cylinder
damage, and this high quality hydraulic station can ensure this debarking machine 24 hours’
working without any stop.
We can supply you with different debarking machine depending on the wood species and capacity.
In addition to this, the machine can also be equipped with a crushing function, so that it can
be used for waste purposes and the raw material can be used efficiently.
2. Adopts rotary cutting principle of non-chuck rotary lathe
3. Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4. One debarker machine can supply with two rotary lathe, save about five or six people
5. Hydraulic feeding, can debarking and roundup small size raw log
Matching machines
Veneer peeling machine
It is main equipment of core veneer production and mainly used to rotary peel the eucalyptus, poplar,
birch, rubber and other fast-growing wood.
after they have been screened by a rotary cutter.
